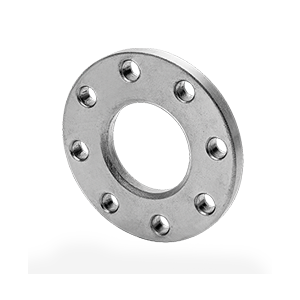

BS 10 Table F & Table H

BS 10 Table F & Table H

Categories: ,

Description

Table
F for W. Steam Pressure 100 lbs per Sq. Inch
(in inchines)		   Table
H for W. Steam Pressure 150 lbs and
upto 250 lbs per Sq. Inch (in inchines)
Nominal
 Dia.
of
Flange		 I.D. of Flange Dia.
of
Bolt Circle		 No.
of
 Dia.
of
Bolt Holes		 Thickness Nominal
 Dia.
of
Flange		 I.D. of Flange Dia.
of
Bolt Circle		 No.
of
 Dia.
of
Bolt Holes		 Thickness
Pipe Size D d5 k Holes d2 b Pipe Size D d5 k Holes d2 b
1/2″ 3.3/4″ 7/8″ 2.5/8″ 4 5/8″ 3/8″ 1/2″ 4.1/2″ 7/8″ 3.1/4″ 4 3/4″ 1/2″
3/4″ 4″ 1.3/32″ 2.7/8″ 4 5/8″ 3/8″ 3/4″ 4.1/2″ 1.3/32″ 3.1/4″ 4 3/4″ 1/2″
1″ 4.3/4″ 1.23/64″ 3.7/16″ 4 3/4″ 3/8″ 1″ 4.3/4″ 1.23/64″ 33.7/16″ 4 3/4″ 9/16″
1.1/4″ 5.1/4″ 1.45/64″ 3.7/8″ 4 3/4″ 1/2″ 1.1/4″ 5.1/4″ 1.45/64″ 3.7/8″ 4 3/4″ 11/16″
1.1/2″ 5.1/2″ 1.15/16″ 4.1/8″ 4 3/4″ 1/2″ 1.1/2″ 5.1/2″ 1.15/16″ 4.1/8″ 4 3/4″ 11/16″
2″ 6.1/2″ 2.7/16″ 5″ 4 3/4″ 5/8″ 2″ 6.1/2″ 2.7/16″ 5″ 4 3/4″ 3/4″
2.1/2 7.1/4″ 2.15/16″ 5.3/4″ 8 3/4″ 5/8″ 2.1/2″ 7.1/4″ 2.15/16″ 5.3/4″ 8 3/4″ 3/4″
3″ 8″ 3.37/64″ 6.1/2″ 8 3/4″ 5/8″ 3″ 8″ 3.37/64″ 6.1/2″ 8 3/4″ 7/8″
3.1/2″ 8.1/2″ 4.5/64″ 7″ 8 3/4″ 3/4″ 3.1/2″ 8.1/2″ 4.5/64″ 7″ 8 3/4″ 7/8″
4″ 9″ 4.37/64″ 7.1/2″ 8 3/4″ 3/4″ 4″ 9″ 4.37/64″ 7.1/2″ 8 3/4″ 1″
5″ 11″ 5.43/64″ 9.1/4″ 8 7/8″ 7/8″ 5″ 11″ 5.43/64″ 9.1/4″ 8 7/8″ 1.1/8″
6″ 12″ 6.23/32″ 10.1/4″ 12 7/8″ 7/8″ 6″ 12″ 6.23/32″ 10.1/4″ 12 7/8″ 1.1/8″
7″ 13.1/4″ 7.5/8″ 11.1/2″ 12 7/8″ 7/8″ 7″ 13.1/4″ 7.5/8″ 11.1/2″ 12 7/8″ 1.1/4″
8′ 14.1/2″ 8.23/32″ 12.3/4″ 12 7/8″ 1″ 8″ 14.1/2″ 8.23/32″ 12.3/4″ 12 7/8″ 1.1/4″
9″ 16″ 9.23/32″ 14″ 12 1″ 1.1/8″ 9″ 16″ 9.23/32″ 14″ 12 1″ 1.3/8″
10″ 17″ 10.7/8″ 15″ 12 1″ 1.1/8″ 10″ 17″ 10.7/8″ 15″ 12 1″ 1.3/8″
12″ 19.1/4″ 12.7/8″ 17.1/4″ 16 1″ 1.1/4″ 12″ 19.1/4″ 12.7/8″ 17.1/4″ 16 1″ 1.5/8″
14″ 21.3/4″ 14.9/64″ 19.1/2″ 16 1.1/8″ 1.3/8″ 4″ 21.3/4″ 14.9/64″ 19.1/2″ 16 1.1/8″ 1.7/8″
16″ 24″ 16.5/32″ 21.3/4″ 20 1.1/8″ 1.5/8″ 6″ 24″ 16.5/32″ 21.3/4″ 20 1.1/8″ 2.1/8″
18″ 26.1/2″ 18.3/16″ 24″ 20 1.1/4″ 1.3/4″ 18″ 26.1/2″ 18.3/16″ 24″ 20 1.1/4″ 2.3/8″
20″ 29″ 20.13/16″ 26.1/2″ 24 1.1/4″ 2″ 20″ 29″ 20.13/16″ 26.1/2″ 24 1.1/4″ 2.5/8″
24″ 33.1/2″ 24.1/4″ 30.3/4″ 24 1.5″ 2.1/4″ 24″ 33.1/2″ 24.1/4″ 30.3/4″ 24 1.5″ 3″
